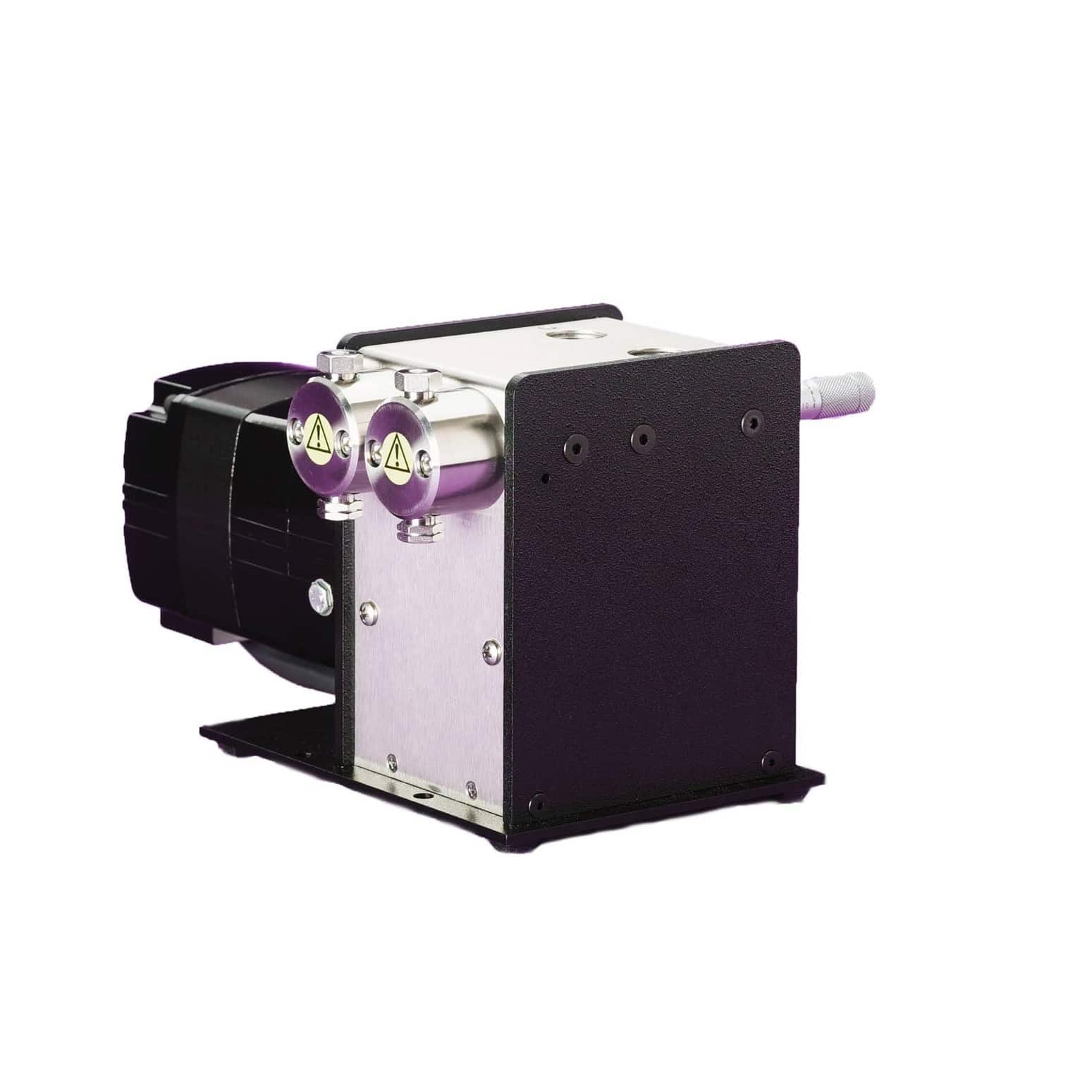

AA-100-S
HP Series pumps offer precise metering at high pressure.
Model AA-100-S:
- Flow rate 0.2 – 10 mL/min
- Maximum pressure 5000 psi
- Material of construction 316SS
- Electrical 115V/60Hz.
Other materials:
Wetted Parts:
- For 316: type 316 stainless steel, sapphire, ruby, gold, UHMW polyethylene, CTFE.
- For PEEK: PEEK, sapphire, ruby, UHMW polyethylene, inert polymers.
- For CTFE: CTFE, sapphire, ruby, gold, UHMW polyethylene.
Reproducibility: typically ±0.3%
Viscosity Limit: 500 centipoise
Tubing Connections:
- Inlet valves: 1/4″-28 low pressure plastic fitting for use with 1/8″ plastic tubing (fitting and 60cm of tubing provided with pump).
- Outlet valves for 316: 10-32 tube nut, ferrule for use with 1/16″ tubing (tube nut and ferrule provided with pump).
- Outlet valves for PEEK: 1/4″-28 plastic fittings for use with 1/16″ tubing (tube nut and ferrule provided with pump).
- Outlet valves for CTFE: 1/4″-28 low pressure plastic fittings for use with 1/8″ tubing (plastic fitting provided with pump).
- Valves with special fittings available on request.
Dimensions (DxWxH): 18.5 cm x 25 cm x 14.5 cm (7.3 in x 9.8 in x 5.7 in)
Weight: 5.4 kg (12 lbs)
Electrical:
- Voltage/Frequency: 115VAC/60Hz
- VA rating: 60
- Fuse: 1 A
Motor: brushless, AC Synchronous, TENV (totally enclosed non ventilated).
*Maximum flow rate specifications are based on theoretical volume displacement; actual flow rates will vary depending on such factors as fluid viscosity, compressibility and temperature. Minimum flow rates are stated per channel, maximum flow rates are stated with combined channels.
Pump Options
#5575: Piston Wash Kit; includes piston.
#5728: Quick Connect Kit.
Preventive Maintenance Kits
#1388: Includes two UHMW polyethylene seals, backup washers, tools for installation, two valve cartridges, one retainer, a sintered stainless steel filter, and tube of lubrication oil.
#1389: Includes two graphite fiber reinforced PTFE piston seals, tools for installation, two valve cartridges, one retainer, a sintered stainless steel filter, and tube of lubrication oil.
Piston Seals
#1022: Piston seal assembly kit; includes one UHMW polyethylene seal, backup washer, and tools for installation.
#1180: Piston seal replacement kit; includes two UHMW polyethylene seals, backup washers.
#1181: Piston seal replacement kit; includes five UHMW polyethylene seals, backup washers.
#1362: Piston seal assembly kit; includes one graphite fiber reinforced PTFE seal, and tools for installation.
#1363: Piston seal replacement kit; includes two graphite fiber reinforced PTFE seals.
#1364: Piston seal replacement kit; includes five graphite fiber reinforced PTFE seals.
Valves
#1369: Inlet valve assembly, cartridge style, 1/4″-28 fitting.
#1372: Outlet valve assembly, cartridge style, 10-32 fitting.
#1373: Inlet valve assembly, cartridge style, 1/8″ Swagelok style fitting.
#1374: Outlet valve assembly, cartridge style, 1/8″ Swagelok style fitting.
#1371: Inlet valve assembly, cartridge style, 10-32 fitting.
#1370: Outlet valve assembly, cartridge style, 1/4″-28 fitting.
#1381: Valve cartridge kit (rebuilds one inlet or one outlet valve).
Piston
#1366: 1/8″ sapphire piston.
#5576: 1/8″ sapphire piston for pumps with wash kit.
Liquid End Assembly
#1395: Includes inlet and outlet valve assemblies, cylinder, piston seals and retainer. Piston not included.
Fittings
#1039: Includes 60 cm of 1/8″ Teflon inlet tubing, inlet (1/4-28) and outlet (10-32) tube nuts, and outlet ferrule.
#1249: Outlet fittings kit; includes three ferrules and three tube nuts (10-32).
Filters
#1042: 2 micron sintered stainless steel filter, with 60 cm long Teflon inlet tube and tube nut.
#5776: 10 micron sintered stainless steel filter, with 60 cm long Teflon inlet tube and tube nut.
Other Parts
#1209: Retainer assembly.
#1040: High Pressure outlet manifold for parallel operation of both channels on AA pumps.
#1152: Inlet manifold for AA pumps.
For other parts, consult factory
